Presentación del producto principal

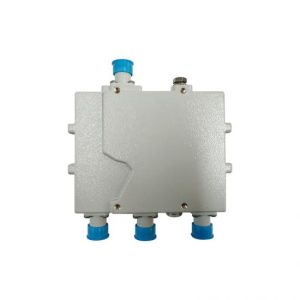

Este Tri-Band RF Combiner is engineered to merge signals from three frequency bands into a single output while minimizing signal distortion and intermodulation. Its low PIM design ensures high network capacity and reliable signal quality in sensitive wireless environments.
The combiner is ideal for use in distributed antenna systems (DAS), repeaters, and base station deployments, offering a durable and compact solution for professional RF applications.
¿Por qué elegir este producto?
- Compatibilidad con tres bandas: Combines three frequency bands efficiently
- PIM bajo: 160 dBc to maintain high signal integrity
- Conector fiable: 4.3-10 female interface
- Compact & Robust: Suitable for field installation
- Optimized for Professional Networks: Ideal for DAS and repeater systems
Escenarios de aplicación
- Sistemas de Antenas Distribuidas (DAS)
- Repetidores y amplificadores celulares
- Base station multi-band signal management
- High-density wireless network deployments
- Sistemas de telecomunicaciones y comunicaciones de seguridad pública
Especificaciones eléctricas
| RF Tri-Band Combiner/Diplexer Specifications (1400-2700 MHz) | |
|---|---|
| Banda de frecuencia (MHz) | 1428-1511 / 1710-1880 / 2330-2690 MHz |
| Pérdida de inserción (dB) | ≤0,2 dB |
| VSWR | 1.22 |
| Port Isolation (Isolation) | ≥50 dB |
| Inter-modulation (3rd order) | ≤-160 dBc @ 2*43 dBm |
| Power/Avg (W) | 100W |
| Impedancia | 50 Ohm |
| Tipo de conectores | N femenino |
| Tasa IP | IP67 |
| Operating Temp. (℃) | -40~+60 |
Preguntas frecuentes
- What frequency bands does this combiner support?
- Tri-band operation (specific bands depend on model specifications).
- ¿Cuál es el rendimiento del PIM?
- Low PIM, rated at 160 dBc.
- ¿Qué tipo de conector se utiliza?
- 4.3-10 female connector.
- Is this suitable for DAS applications?
- Yes, it is optimized for DAS, repeaters, and base station installations.
- Can it be used in outdoor deployments?
- Yes, the compact and robust design allows for field installation.
